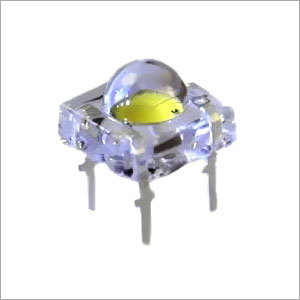

High Flux LEDs

High Flux LEDs
High Flux LEDs
Product Code : KLHF725W
Brand Name : Kwality polyWa
Product Description

 High Flux LEDs:

 POWER Watts

 0.1Watts
 CURRENT Max  20mA
 VOLTAGE Vf  3-3.5Volts
 LUMEN S  8 Lumens
 SIZE(LxB)  7.62mm x 7mm
CCT (Color Corelation Temperature) Cool White 5500-6500K

Kwality Photonics  Power LEDs 725W is an excellent Low power LED solid sate light applications. This emitter with silicon lens technology provides the good life and can be reflow soldered at 260°C. The light output decay less than 10% at severe stress conditions (700mA, 85°C ,85%RH) proves high reliability. Due to Phosphor technology the White show good color stability( less than 50K shift with Tj at 100°C ). Due to special lens design user gets uniform light with any secondary optics. It is used for illumination applications.  It operates at the lower current levels of 20 mA where brightness output is of 3,000 mcd. It is packaged on high thermal conductive material with four leads which quickly drain the heat away and keep the LED temperature down for efficient operation. It can be used to simulate point light source for enhanced optical performance. It is developed for sunlight applications like traffic control lights, automobile brake lights, and outdoor signs. Other typical applications are automotive exterior tail light, brake and side marker lighting and interior lighting, displays and signage lighting, backlighting, status indication for industrial controls and machinery, cellular antenna control box status lights that must be viewed over long distances, etc.
