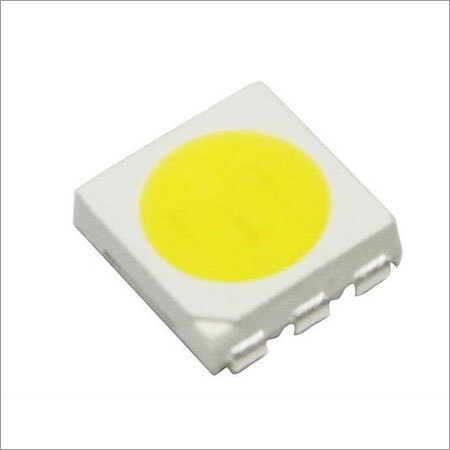

Medium Power SMD LED

Medium Power SMD LED
Medium Power SMD LED
Product Code : 11
Product Description

Kwality Photonics offering 0.5 Watt Medium Power LED Chip in grades are  65 lumens to 70 lumens at 150 ma drive current. These products are offered in colors such as 6000 K (White), 4500 K ( Neutral White) & 3000 K (Warm white). The PolyWa 5630 series are ideal for retrofit Bulbs & Down light, Street Lights, Flood Lights, Panel Lights, Tube Lights, Lanterns, High Bay Light applications.

Features:


  • The LED Chips in classic SMD packages are 3014 & 3528 LEDs.

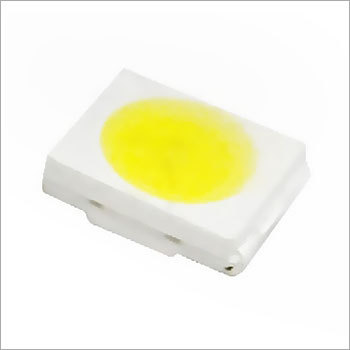

  • The KLSL3228 W delivers 8-9 Lumens at 20 mA (0.06 W)
  • The KLSL3014 W delivers 12 Lumens at 30 mA (0.1 W)
  • The LED Chips in MOST POPULAR medium power SMD packages are 2835 & 5630 LEDs.
  • The KLSL2835 W-26 delivers 24 Lumens at 60 mA (0.2 W) & KLSL2835 W-65 delivers 65 lumens at 150 ma.
  • The High power LEDs like KLHP331 W deliver 130 lm & 145 lm respectively, in non-reflow grade. the 3 Watt reflow grade emitters KLHP3433 W of 280 lm & KLHP3535 W gift you the flexibility of producing


0.5 Watt Medium Power LEDs
:

  • Power Watts: 0.5 Watts
  • Current Max: 150 Ma
  • Voltage Vf: 3-3.3 Volts
  • Lumen S: 60 & 65 Lumens
  • Size (Lxb): 5.6 mm X 3.0 mm


Specifications:

Parameter

Symbol

Min

Typ.

Max

Units

Test Conditions

Forward Voltage

VF

3.0

--

3.8

V

IF=150 ma








Luminous Flux

v

60

65


--

IF=150 ma







Color Temperature

Tc

--

6500

--

K

IF=150 ma

Color Rendering Index

CRI

70

--

--

Ra

IF=150 ma

Viewing Angle



120
