High Power LED 3 Watt Price And Quantity
- 4000 Unit
- 15 INR/Unit
High Power LED 3 Watt Product Specifications
- KLHP3433WE
High Power LED 3 Watt Trade Information
- 4000 Unit Per Day
- 1 Days
- All India
Product Description
Kwality Photonics produces popular 3Watt High Power LED 3433 WE which emits 220/280 Lumens @700mA . Our Power LEDs 3Watt is an excellent high power LED used for solid sate light applications.This emitter with silicon lens technology provides the good life and can be non-reflow soldered at 155-165°C. The light output decay less than 10% at severe stress conditions (700mA, 85°C ,85%RH) proves high reliability. Due to Phosphor technology the White and Warm white show good color stability (less than 50K shift with Tj at 100oC) Due to special lens design user gets uniform light with any secondary optics.
Features:
- The LED Chips in classic SMD packages are 3014 & 3528 LEDs.
- The KLSL3228W delivers 8-9Lumens at 20mA (0.06W)
- The KLSL3014W delivers 12Lumens at 30mA (0.1W)
- The LED Chips in MOST POPULAR medium power SMD packages are 2835 & 5630 LEDs.
- The KLSL2835W-26 delivers 24Lumens at 60mA (0.2W) & KLSL2835W-65 delivers 65 lumens at 150mA.
- The KLSL5630W delivers 60Lm, 65Lm & more with grades starting at sub Rs2 prices.

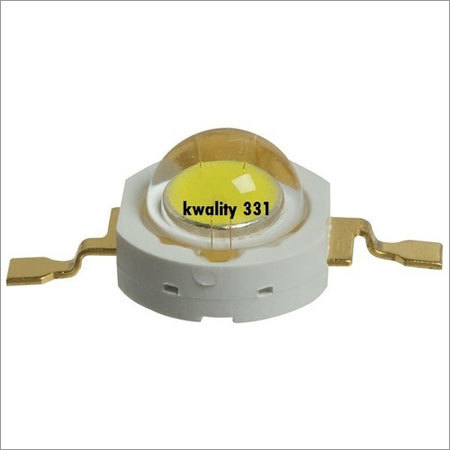

- The High power LEDs like KLHP331W deliver 130lm & 145Lm respectively, in non-reflow grade. the 3Watt reflow grade emitters KLHP3433W of 280Lm & KLHP3535W gift you the flexibility of producing LED lights with just a simple soldering iron or with modern pick & place machine !
- Also check LEDs under product groups: Power LEDs, COB LEDs, Medium Power LEDs, Low Power LED Chips,
3Watt High Power LED:
- Power Watts: 3 Watt
- Current Max: 700 Ma
- Voltage Vf: 3-3.5 Volts
- Lumen S: 220/280 Lumens
- Size(Lxbxh): 7.26 mm X14.6 mm X5.3 mm
Specifications:
Parameter | Rating White Series/Royal Blue/Blue/Amber/Red |
Typical DC Forward Current | 350 to 700 ma |
LED Junction temperature | 125 C |
Led operating temperature | -40 to 110°C |
Storage Temperature | -40 to 110°C |
Soldering Temperature | Max 260 max 10 seconds |
ESD sensitivity | 2000 V HBM |
Reverse Voltage | Not design to be driven in reverse bias |
Preconditioning | Acc to JEDEC |
